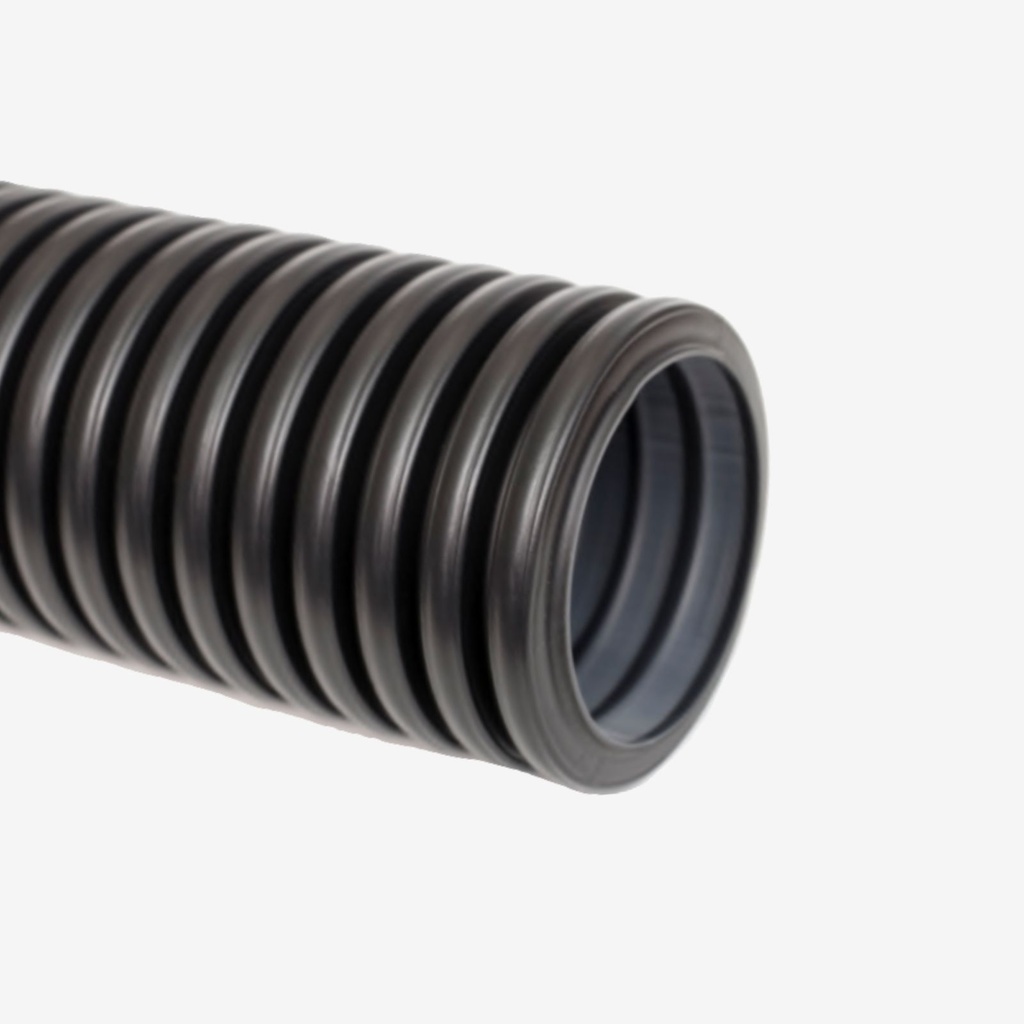

AirFlex Profi Antibacterial Ventilation Duct DN63představuje špičku v technologii distribuce vzduchu pro moderní systémy rekuperace. Toto 50m balení je navrženo tak, aby poskytovalo hygienický, tichý a energeticky efektivní přenos čerstvého vzduchu v rodinných domech, bytech i komerčních prostorech. Díky unikátní dvouvrstvé konstrukci a patentované antimikrobiální ochraně zaručuje, že vzduch, který dýcháte, zůstane čistý po celou životnost systému.
Advanced Antimicrobial & Structural Technology
Active Microbial Shield
The internal layer is infused with silver and copper ions, providing lifetime protection against 100% of bacterial and fungal colonies (ISO 22196:2011). Unlike coatings, this protection is integrated into the polymer matrix and will not migrate or wash away.
Anti-Static Performance
Proprietary antistatic additives prevent the buildup of static electricity on the internal surfaces. This drastically reduces dust accumulation over years of operation, maintaining system hygiene and reducing the need for professional duct cleaning.
Certified Food-Safe
Constructed entirely from modified high-density polyethylene (HDPE), the duct is fully approved for contact with food. This guarantees that no volatile organic compounds (VOCs) or harmful odors are released into your home's air supply.
Acoustic Comfort
The double-wall design features a corrugated outer layer for strength and an ultra-smooth internal layer for low air resistance. The internal air pockets between layers act as a natural sound dampener, suppressing airflow noise even at higher velocities.
Technical Specifications for AirFlex Profi DN63
Parameter
Value / Standard
Material
Modified HDPE with 30 ppm silver ion protection
Compression Strength
> 500 N (EN 61386-24)
Impact Resistance
High impact strength (EN 61386-24)
Operating Temperature
-30°C to +60°C
Duct diameter
DN63 = 63 mm outside diameter; 50 mm inside diameter
Minimum Bending Radius
3 x DN (0.189 m at 20°C)
Air Velocity (3 m/s)
~21.2 m³/h flow capacity
Internal Surface
Ultra-smooth, friction-reducing layer

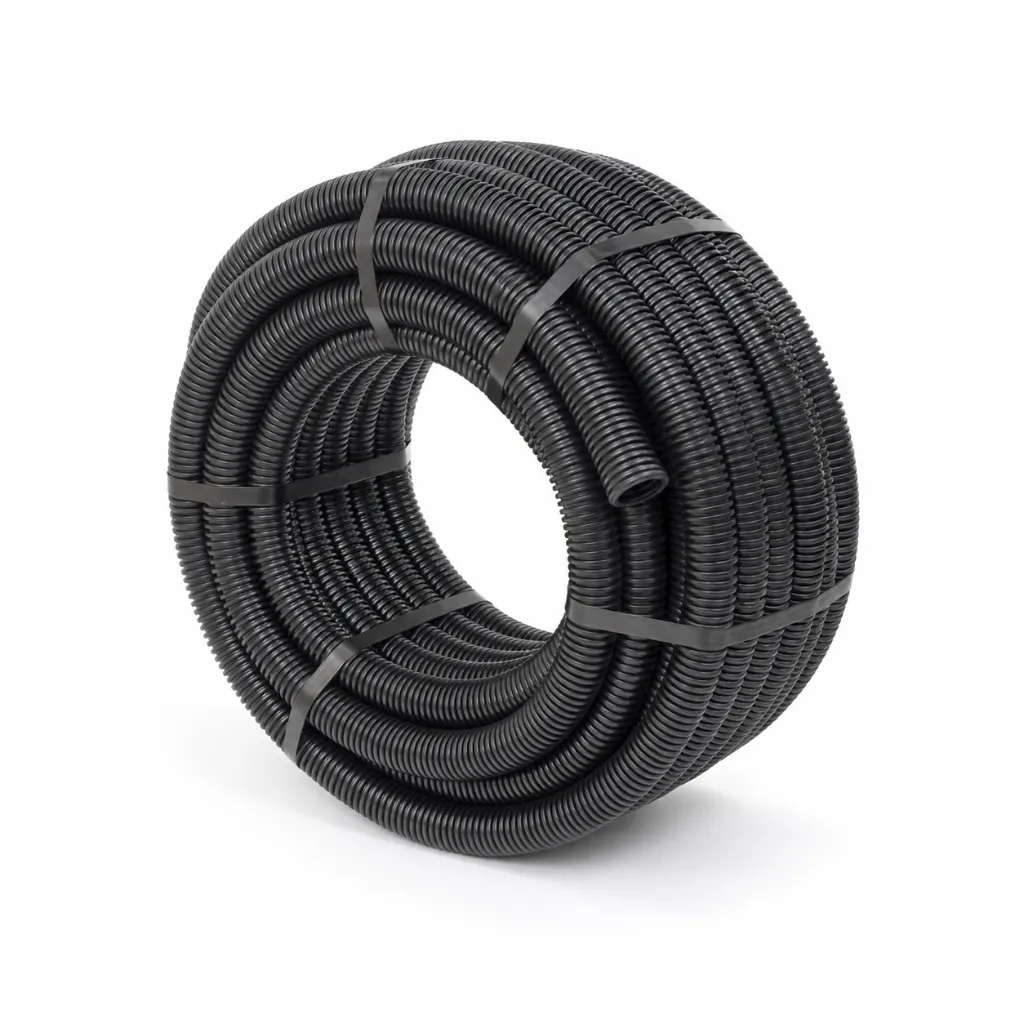

Standard Length
50 meters
AirFlex Profi vs. AirFlex Premium Variants
AirFlex ducts are available in two levels of antimicrobial protection to suit different building requirements:
Comparison Feature
AirFlex Profi (Standard)
AirFlex Premium (Hospital Grade)
Silver Ion Concentration
30 ppm
100-150 ppm
Primary Application
Residential houses & apartments
Hospitals, Labs, Food Industry
Microbial Efficacy
High (Residential standard)
Maximum (Clinical standard)
Full VENTIT System Integration
Our antibacterial ducts are part of the completeVENTITecosystem. They are designed for a 'perfect fit' with our distribution boxes, manifolds, and valves, ensuring airtight connections without the need for additional gaskets or tapes in most standard installations.
B2B Partners:Get access to wholesale pricing and technical project support.
