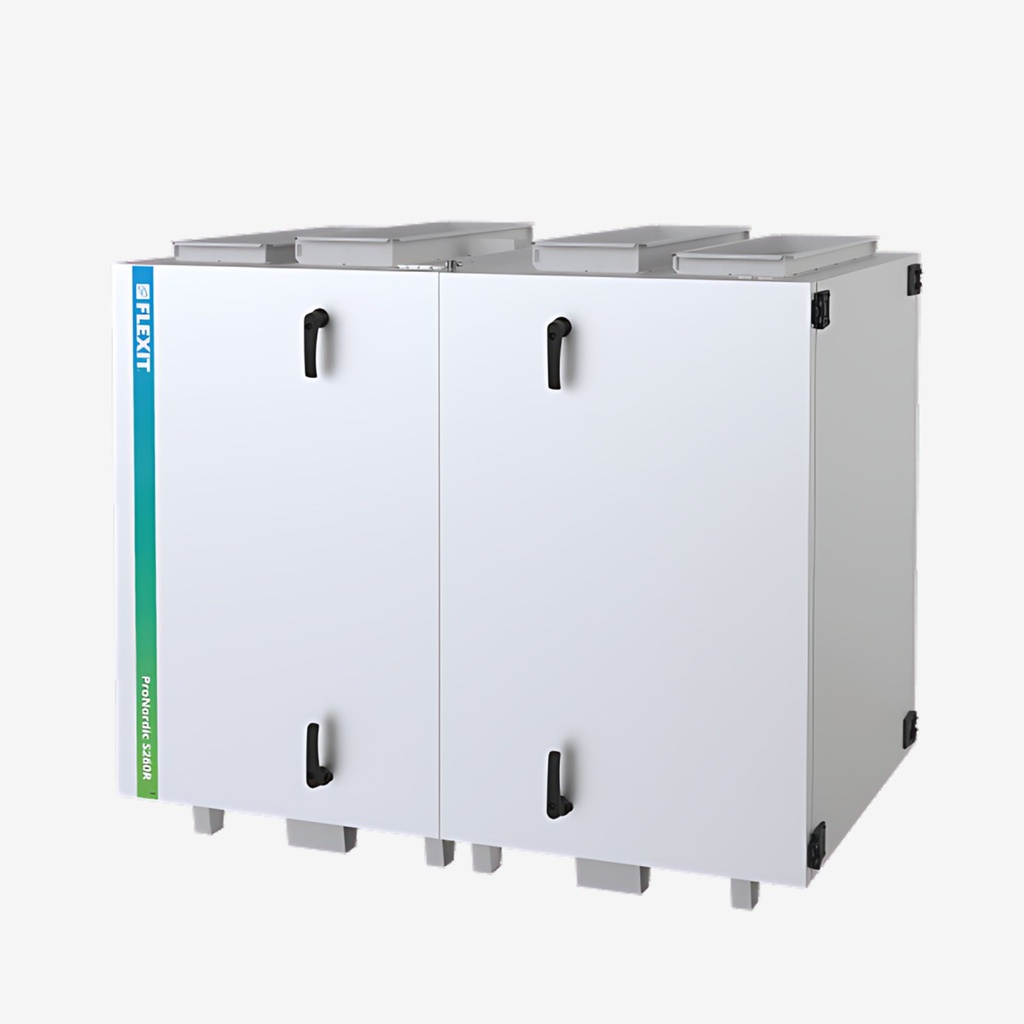

Flexit ProNordic S260R is a high-performance commercial air handling unit with a rotary heat exchanger, available in stock from Flexit. With a maximum airflow of 3 900 m³/h at 250 Pa and circular duct connections on the top of the unit, it covers ventilation for larger office buildings, schools, shopping centres, fitness centres and apartment buildings. Energy-efficient EC fans with radial wheels and the integrated Siemens Climatix CS2500 control system with Modbus TCP/IP or RTU communication ensure quiet operation and seamless integration into building management systems (BMS). Supplied as a right-hand unit, easily convertible to left-hand on site. The heating coil (electric or water) is installed as an accessory on site.
Key Benefits
Performance Parameters
Flexit ProNordic S260R achieves a maximum airflow of 3 900 m³/h at 250 Pa. Circular duct connections are located on the top of the unit. Compact dimensions of 1 810×1 530×1 330 mm allow installation even in smaller plant rooms.
@ 250 Pa
(litres per second)
(gross)
(W × H × D)
Siemens Climatix CS2500 control system
Integrated control system with constant airflow or 3-speed regulation. Modbus TCP/IP or RTU for BMS connection. ProPanel (push-button) or ProTouch (touch-screen) panel sold separately. Automatic filter alarm based on pressure differential.
Flexible design — impossible to order wrong
Supplied as standard in right-hand configuration. Conversion to left-hand done on site via DIP switch — no special tools required. Heating coil (electric or water) installed on site as accessory. Eliminates wrong-order risk and saves costs when project requirements change.
Commercial buildings — schools, offices, retail
With up to 3 900 m³/h, the ProNordic S260R is ideal for larger apartment buildings, schools, shopping centres, fitness centres and office buildings. Circular top duct connections simplify connection to ceiling void ductwork.
Robust construction without thermal bridges
Double-walled 50 mm panels without thermal bridges provide excellent insulation and prevent condensation on the casing. ePM1 55 % (F7) filtration on supply and extract air. Automatic bypass enables free cooling during transitional seasons.
Installation and servicing
ProNordic S260R is designed for floor-mounted indoor installation — plant room, mechanical room or ceiling void. The unit must be placed in a dry location protected from the weather.
All air connections are on the top of the unit as circular duct connections. Exact connection diameters are specified in the manufacturer’s technical documentation.
The unit can be supplied pre-configured (right- or left-hand, with electric or water heating coil) to project requirements — with a defined lead time. Stock version delivered without heating coil in right-hand configuration.
Automatic bypass provides free cooling during transitional seasons without manual intervention.
ProPanel and ProTouch — two control options
ProPanel is a standard push-button panel for basic operation and unit status overview. Suitable where simple control is sufficient.
ProTouch is a touch-screen panel with an application for local unit connection. Offers extended settings, parameter visualisation and alarm history. Both panels sold separately as accessories.
For BMS integration, communication via Modbus TCP/IP or RTU is used. The unit supports constant airflow regulation or 3 fixed speed levels.
Technical Specifications
| Parameter | Value |
|---|---|
| Max. airflow | 3 900 m³/h @ 250 Pa (1 083 l/s) |
| Heat exchanger type | Rotary (heat wheel) — high annual efficiency |
| Fan type | Radial with EC motors (2 units) |
| Fan regulation | Constant airflow or 3 speeds (Modbus) |
| Duct connection | Circular, top-mounted (exact diameter — see technical docs) |
| Filters — supply | Compact ePM1 55 % (F7) |
| Filters — extract | Compact ePM1 55 % (F7) |
| Control system | Siemens Climatix CS2500 |
| BMS communication | Modbus TCP/IP or RTU |
| Automatic bypass | Yes (free cooling) |
| Filter alarm | Pressure differential based |
| Panel insulation | Double-walled 50 mm, no thermal bridges |
| Dimensions (W×H×D) | 1 810×1 530×1 330 mm |
| Gross weight | 409 kg |
| Configuration | Right-hand (convertible to left-hand — DIP switch) |
| Installation | Floor-mounted, indoor only |
| Heating coil | Electric or water — accessory, on-site installation |
| Control panels | ProPanel (push-button) / ProTouch (touch-screen) — accessory |
| Certifications | ERP 2018 (EU 1253/2014), Nordic Swan Ecolabel eligible |
| Stock availability | In stock at Flexit |
| Product no. | 173200 |
| GTIN | 7023671732004 |
ProNordic S260R vs S240R vs S220R — which model to choose?
ProNordic S260R (3 900 m³/h) and ProNordic S240R (3 100 m³/h) share identical dimensions (1 810×1 530×1 330 mm) and the same circular top duct connections. The S260R handles 26 % more airflow than S240R. Both are easily convertible from right- to left-hand.
For medium-sized spaces up to 2 400 m³/h, ProNordic S220R with rectangular 500×250 mm connection is the better choice.
For residential use in single-family homes, we recommend the Flexit Nordic range.
Reliable commercial ventilation. 3 900 m³/h capacity. Professional control.
Flexit ProNordic S260R is an energy-efficient AHU with a rotary heat exchanger, airflow up to 3 900 m³/h, Siemens Climatix CS2500 control, 5-year warranty and stock availability — flexible, compact and reliable.
